EV Charging Cable — factory-direct, OEM/ODM available

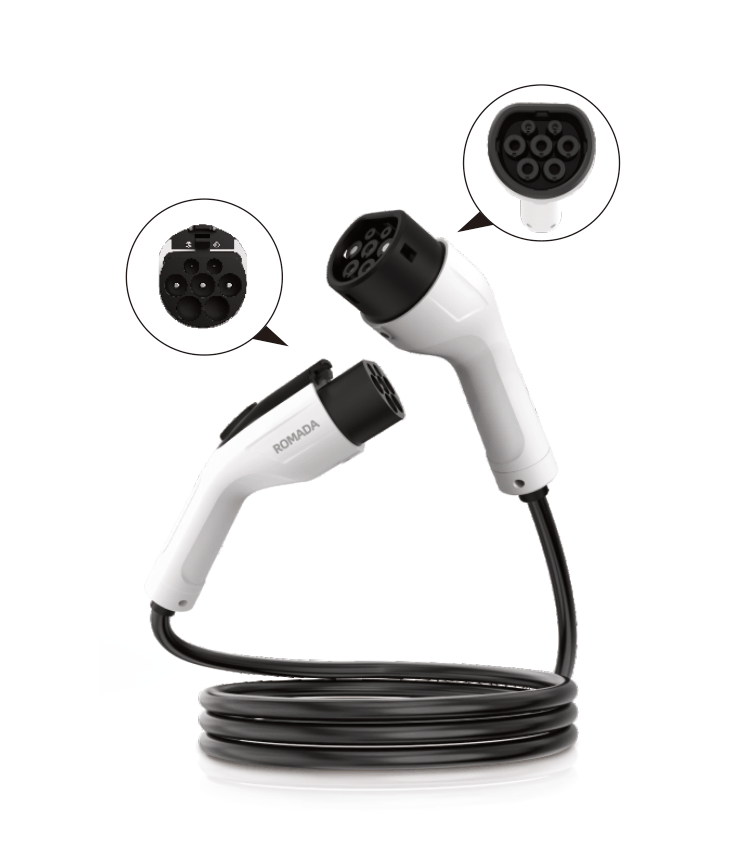

The dual-head connector in its socket-service configuration: for shared charging points that provide a socket but no attached gun, this unit supplies the missing connector pair so the station serves vehicles directly. Same 16A/32A electricals as the extension variant — silver-plated copper pins, IP55, UL94-V0 housing — packaged for station operators and utilities maintaining public or semi-public infrastructure. Sold into the maintenance and operations channel rather than consumer retail.
Custom connector, cable length, branding and packaging available on OEM/ODM orders.
| Charging Power | 3.5kW/7kW |
| Current Gear | 16A/32A |
| Rated Voltage | 250V/380V |
| Operating Frequency | 50Hz ± 2Hz |
| Charging Method | Plug and Play |
| Conductive Pins | Copper Alloy Plated with Silver |
| Protection Rating | IP55 (when closed) |
| Flame Retardant Grade | UL94-V0 |
| Shell Material | Thermoplastic Engineering Plastic |
| Sealing Material | Rubber, Silicone |
| Operating Temperature | -25°C ~ 65°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Safety Functions | Waterproof and dustproof, flame-retardant material, automatic power-off when fully charged, leakage protection, overvoltage protection, charging anti-theft design with intelligent safety locking. Supports vehicle electronic charging lock function. |
| Applications | For State Grid shared charging piles that only have a charging gun socket without a charging gun, a dual-male dual-head gun is needed to plug into the shared charging pile for charging. |
MOQ-friendly, DDP shipping to EU/US/UK/AU, 7-day sample dispatch. Tell us your target market and volume — we reply within 24 hours.
