15 models of wall-mounted EV chargers. 7kW/11kW/22kW AC charging with Mode 3. Display and indicator light models available. IP54/IP66 rated for indoor and outdoor use.

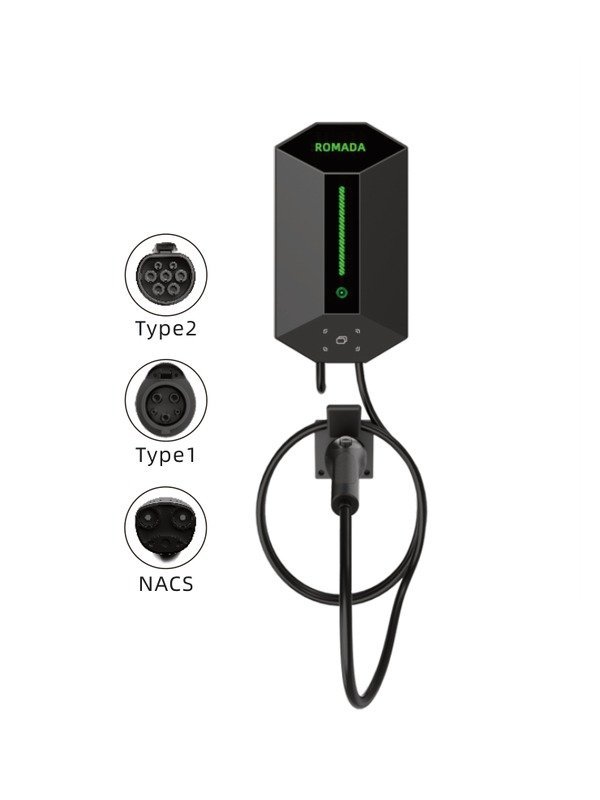

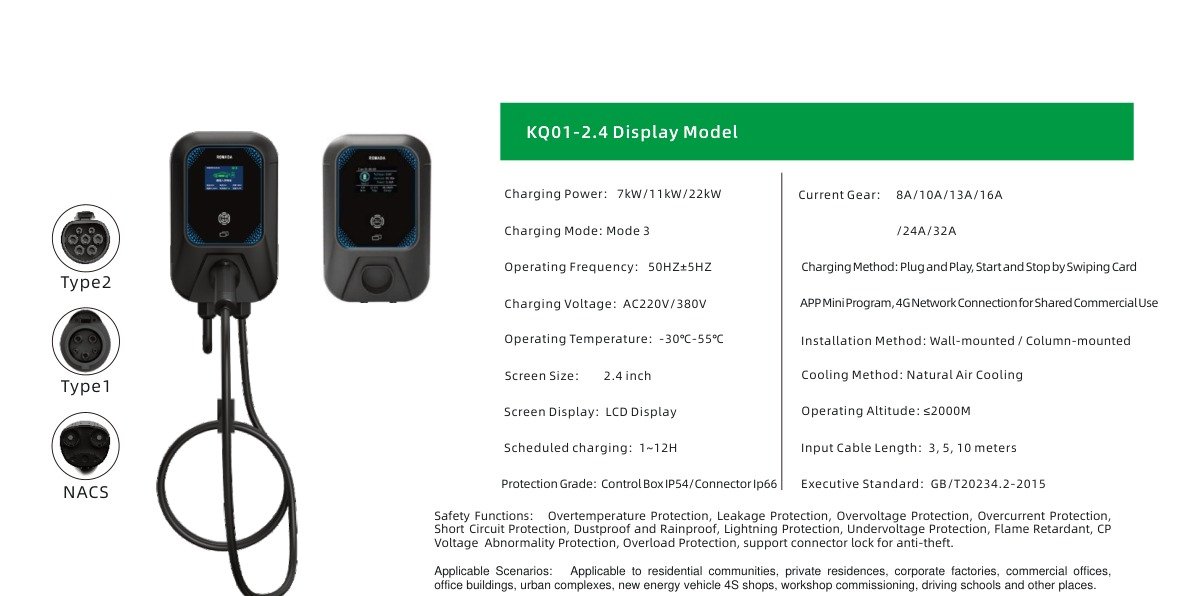

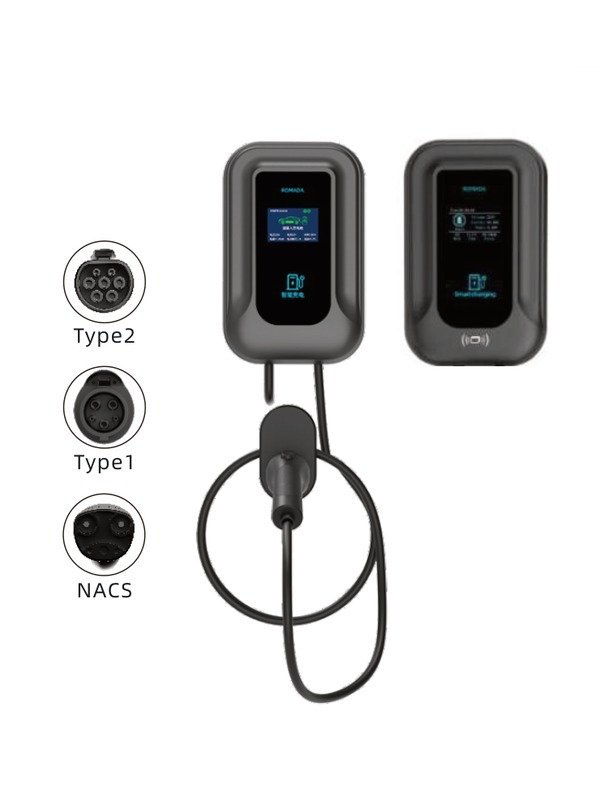

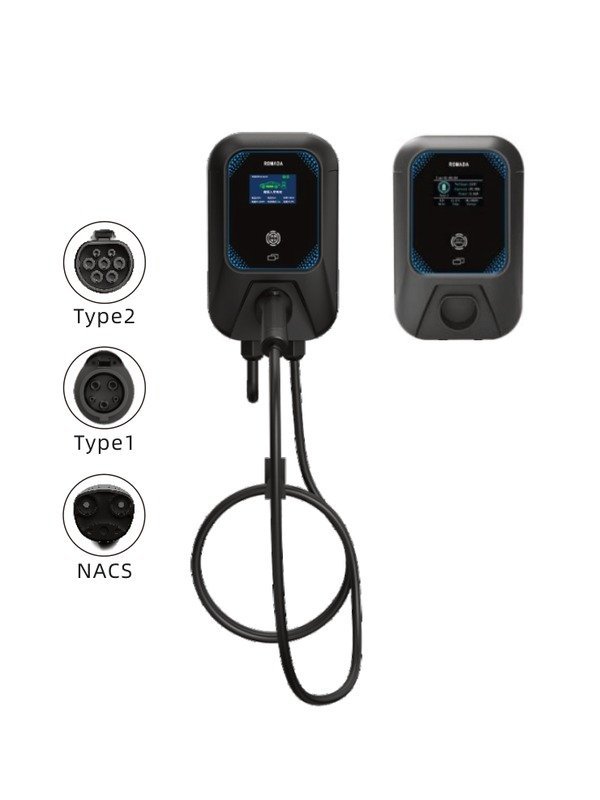

The KQ01 2.4 Display Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features a 2.4 inch LCD Display. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 8A/10A/13A/16A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Size | 2.4 inch |
| Screen Type | LCD Display |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -30°C ~ 55°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | 1~12H |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

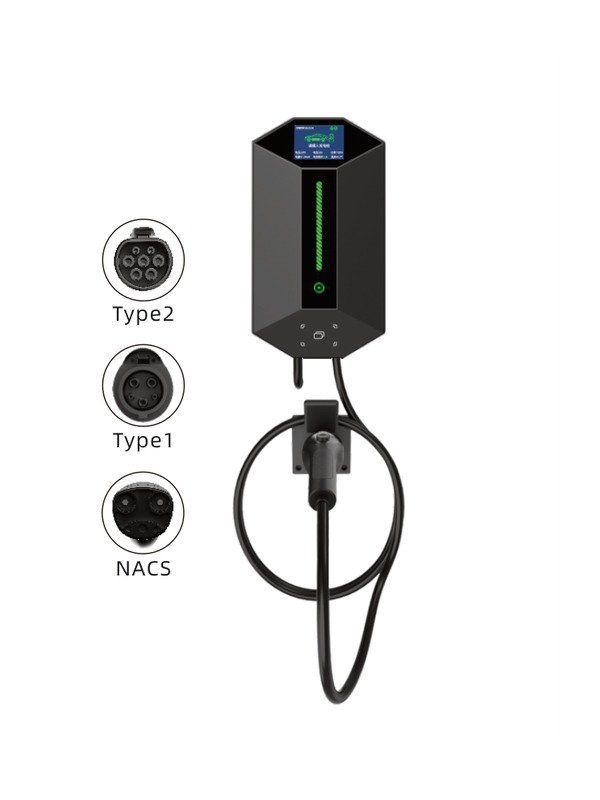

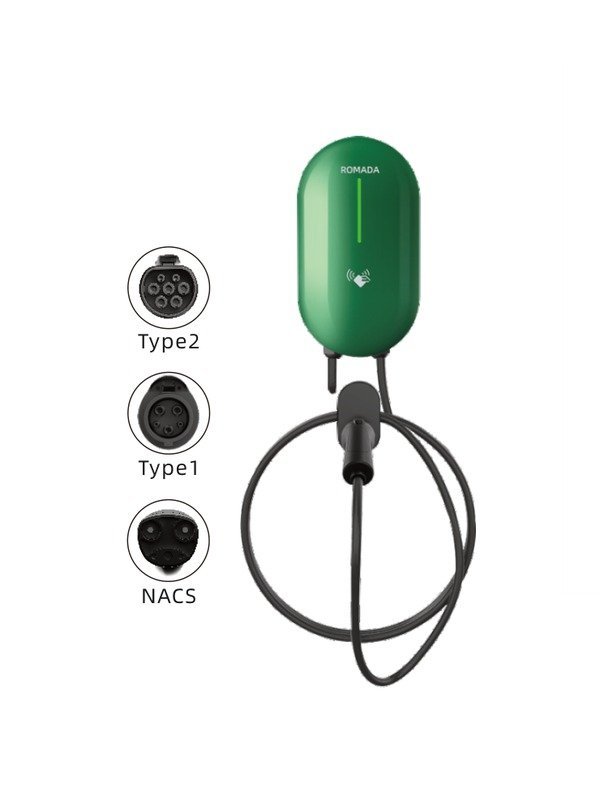

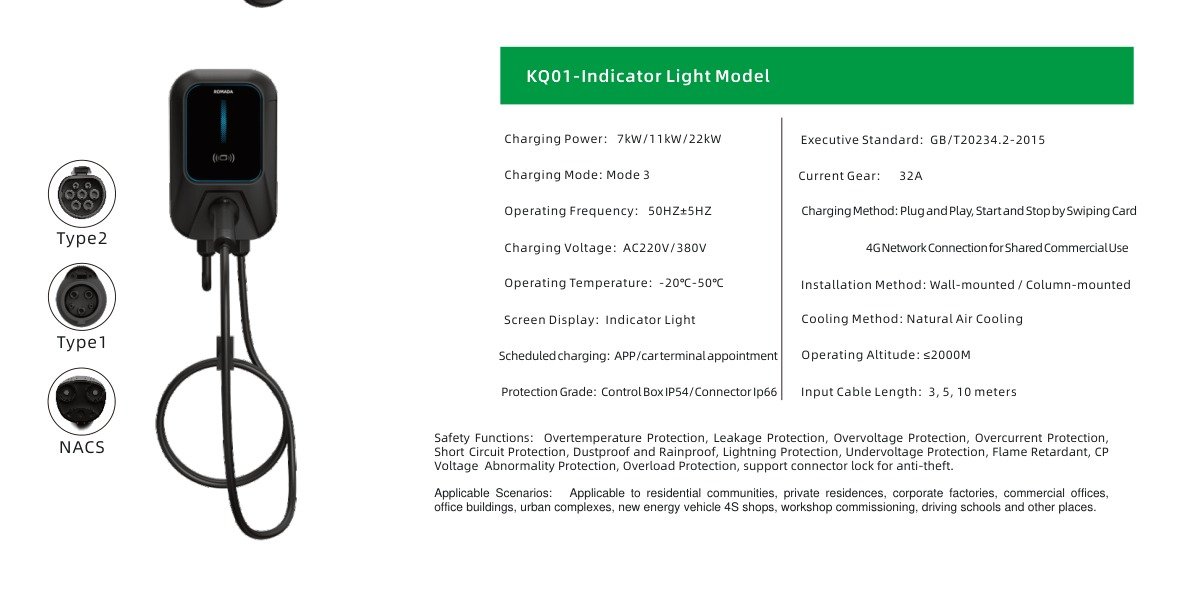

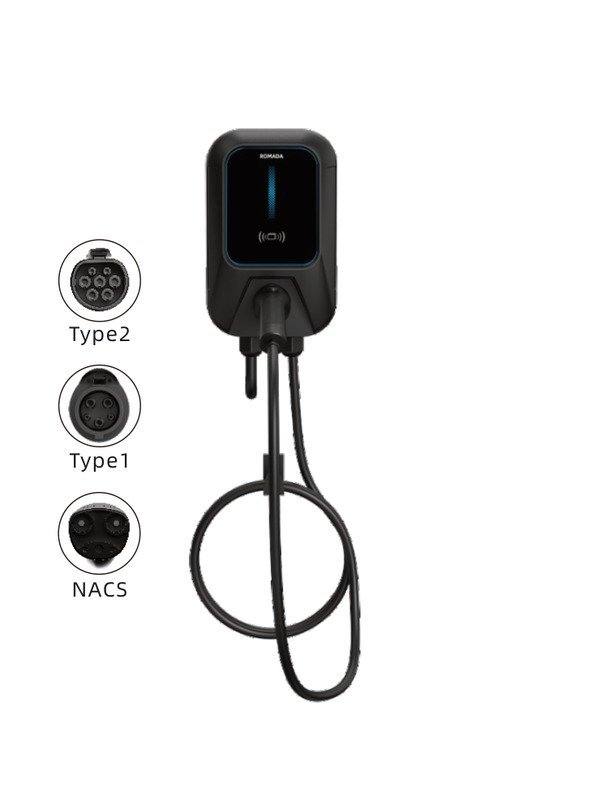

The KQ01 Indicator Light Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features Indicator Light. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 32A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Type | Indicator Light |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -20°C ~ 50°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | APP/Car terminal appointment |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

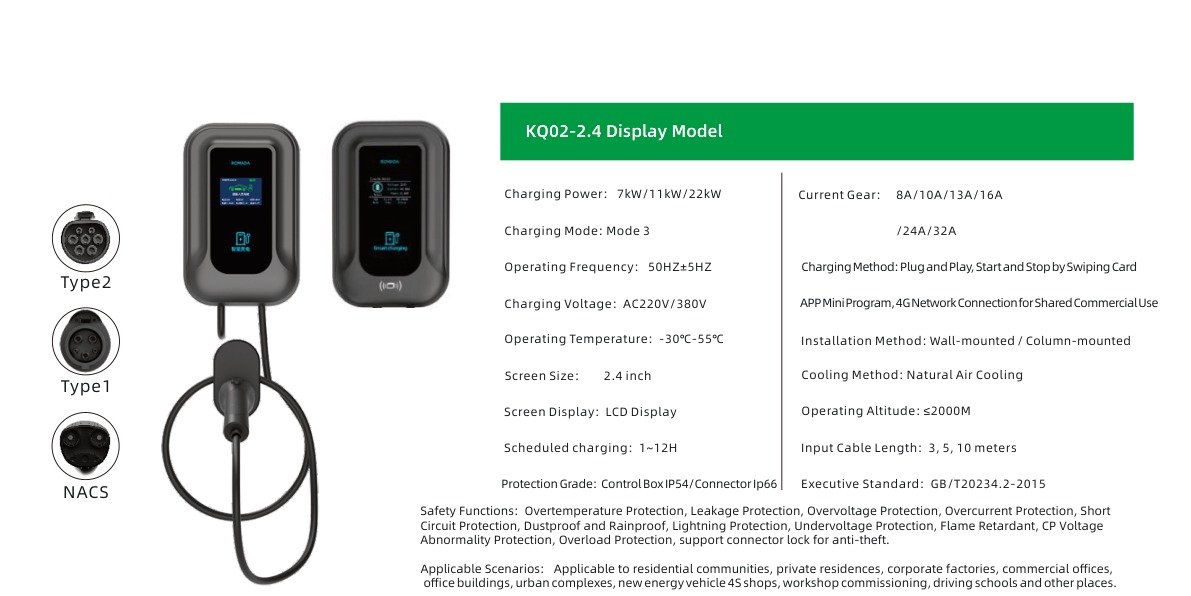

The KQ02 2.4 Display Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features a 2.4 inch LCD Display. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 8A/10A/13A/16A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Size | 2.4 inch |
| Screen Type | LCD Display |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -30°C ~ 55°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | 1~12H |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

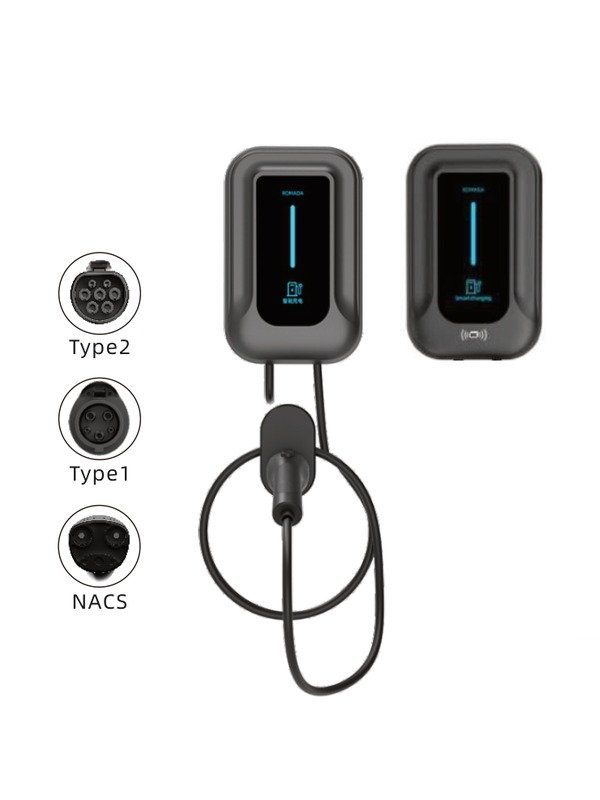

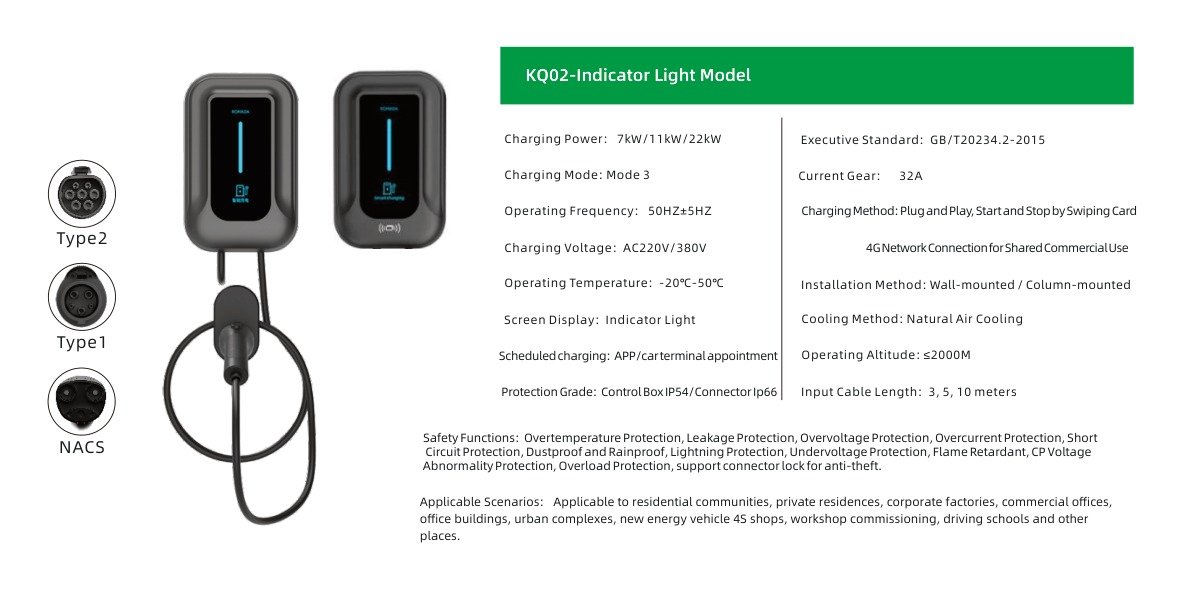

The KQ02 Indicator Light Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features Indicator Light. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 32A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Type | Indicator Light |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -20°C ~ 50°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | APP/Car terminal appointment |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

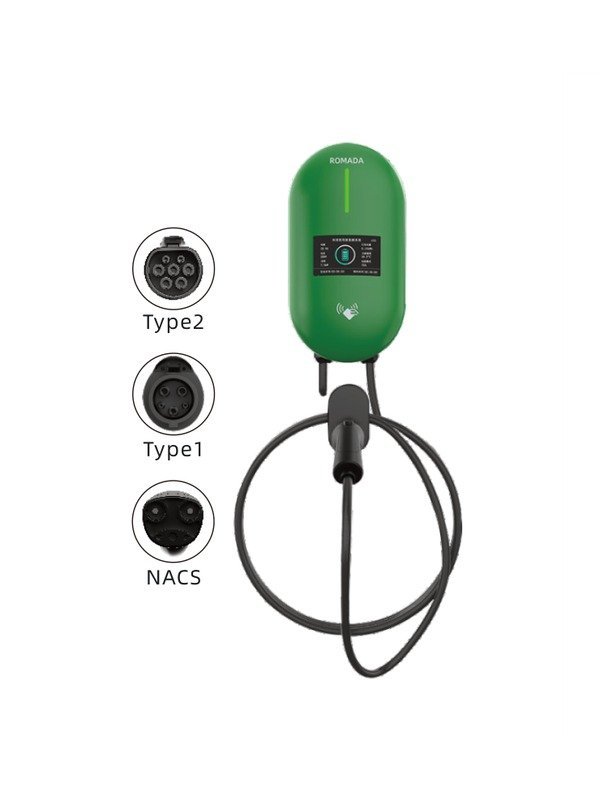

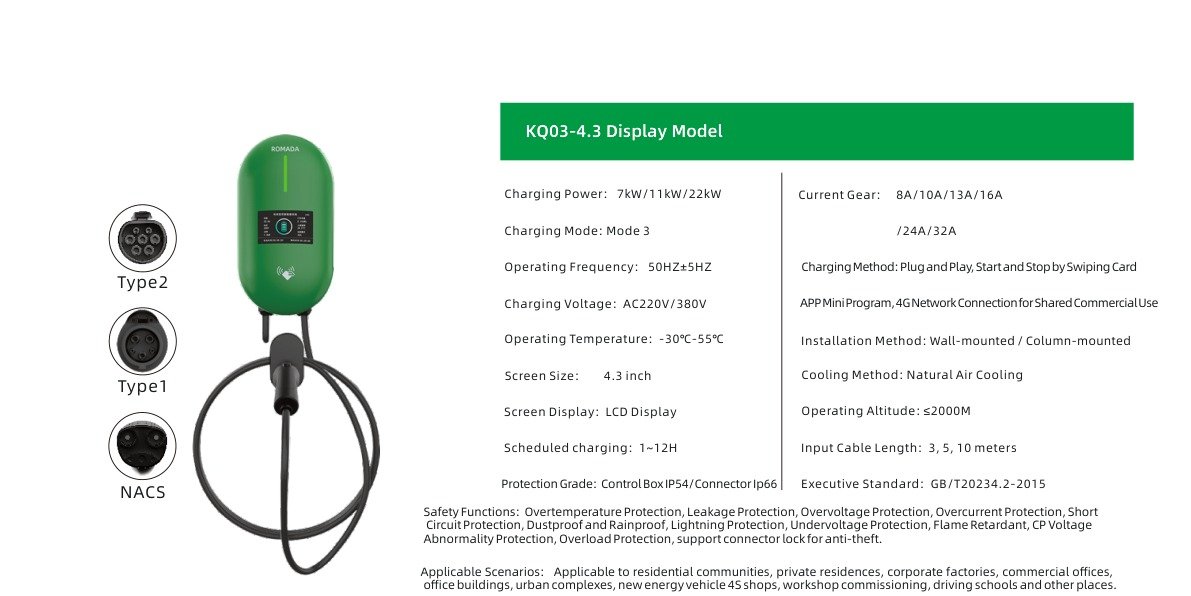

The KQ03 4.3 Display Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features a 4.3 inch LCD Display. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 8A/10A/13A/16A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Size | 4.3 inch |
| Screen Type | LCD Display |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -30°C ~ 55°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | 1~12H |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

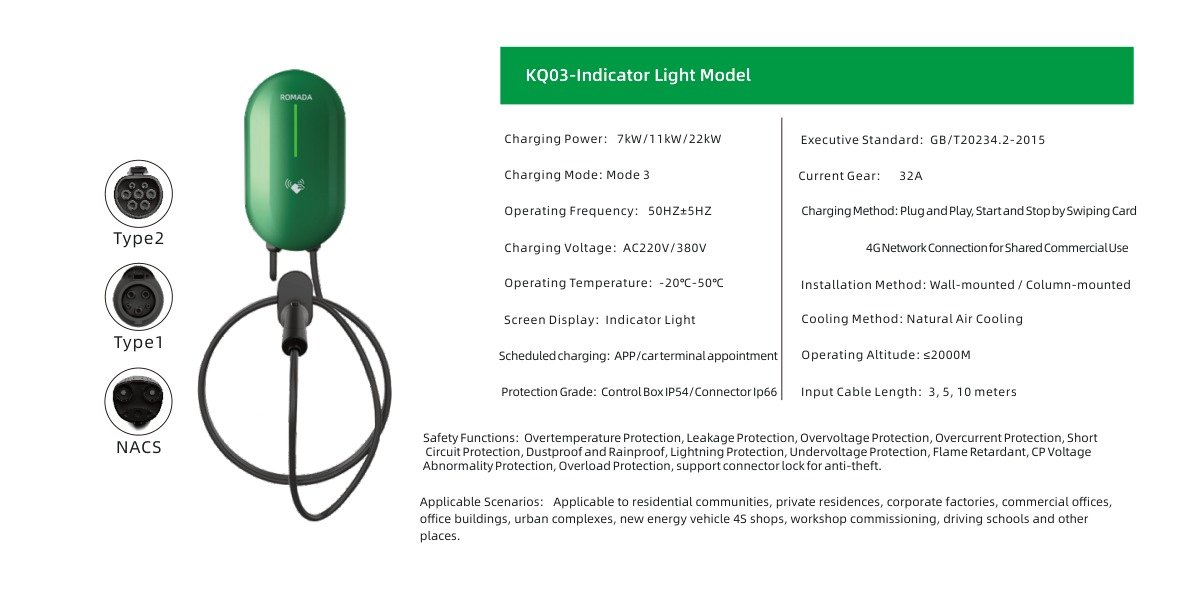

The KQ03 Indicator Light Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features Indicator Light. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 32A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Type | Indicator Light |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -20°C ~ 50°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | APP/Car terminal appointment |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

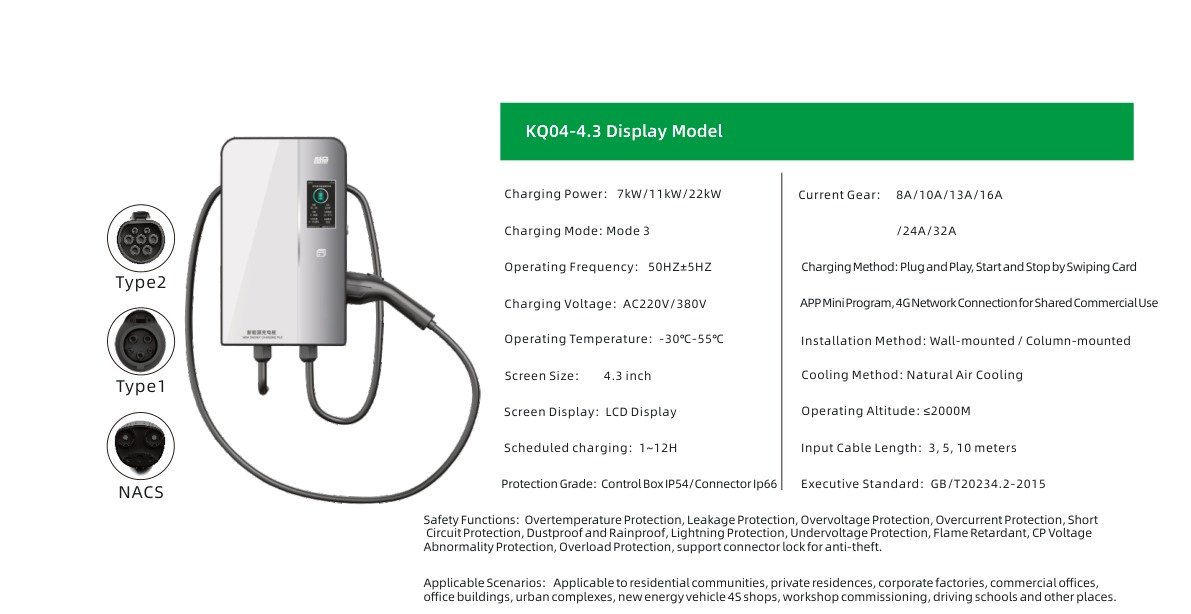

The KQ04 4.3 Display Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features a 4.3 inch LCD Display. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 8A/10A/13A/16A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Size | 4.3 inch |
| Screen Type | LCD Display |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -30°C ~ 55°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | 1~12H |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

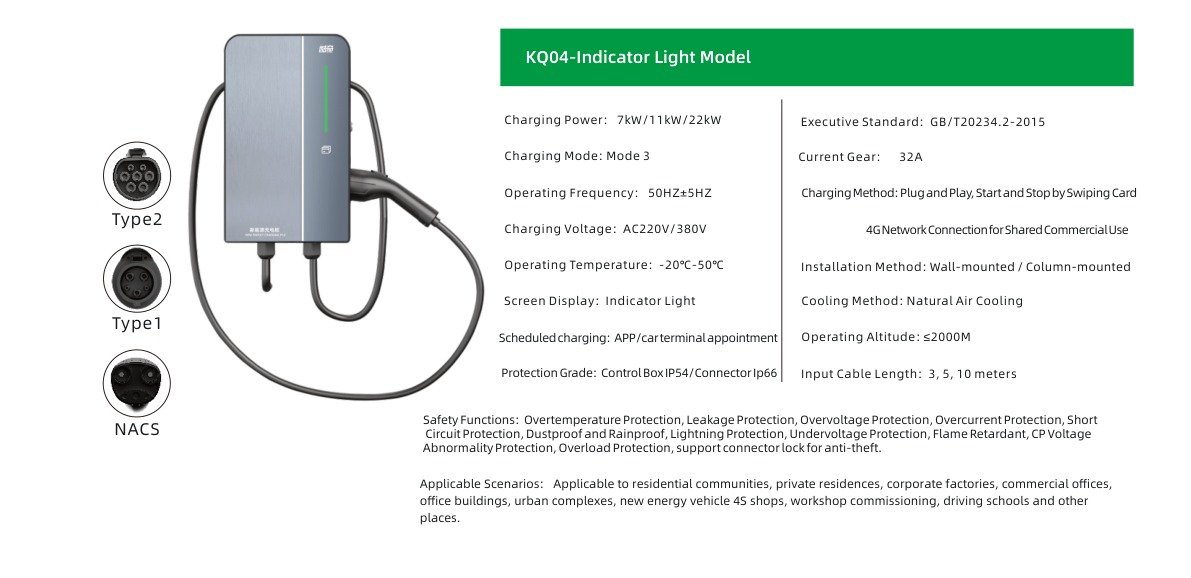

The KQ04 Indicator Light Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features Indicator Light. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 32A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Type | Indicator Light |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -20°C ~ 50°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | APP/Car terminal appointment |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

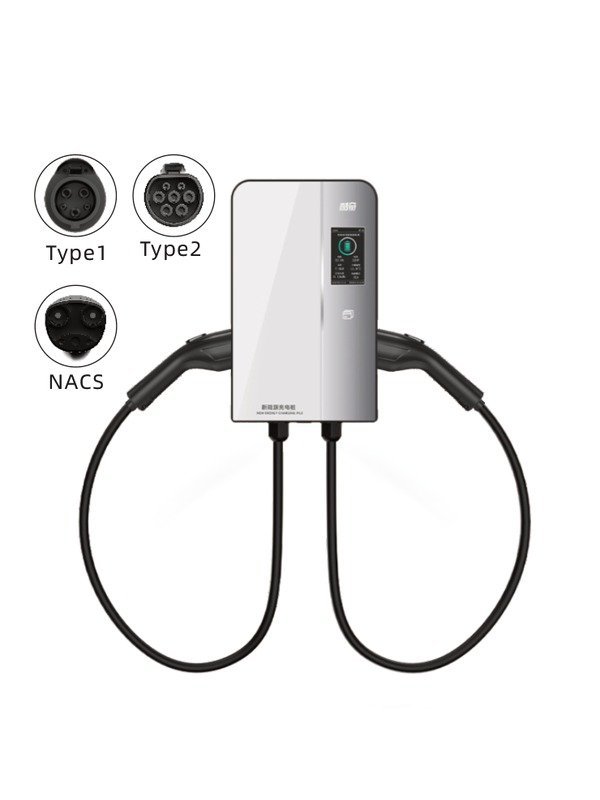

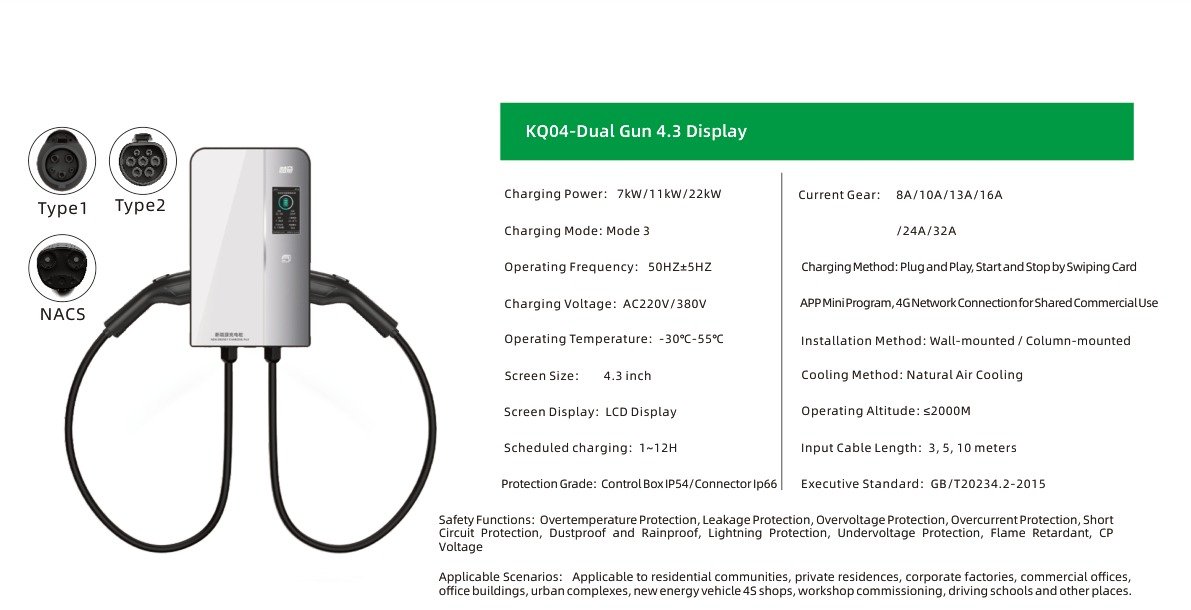

The KQ04 Dual Gun 4.3 Display is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features a 4.3 inch LCD Display. Dual Gun - charge two vehicles simultaneously. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 8A/10A/13A/16A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Size | 4.3 inch |
| Screen Type | LCD Display |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -30°C ~ 55°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | 1~12H |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

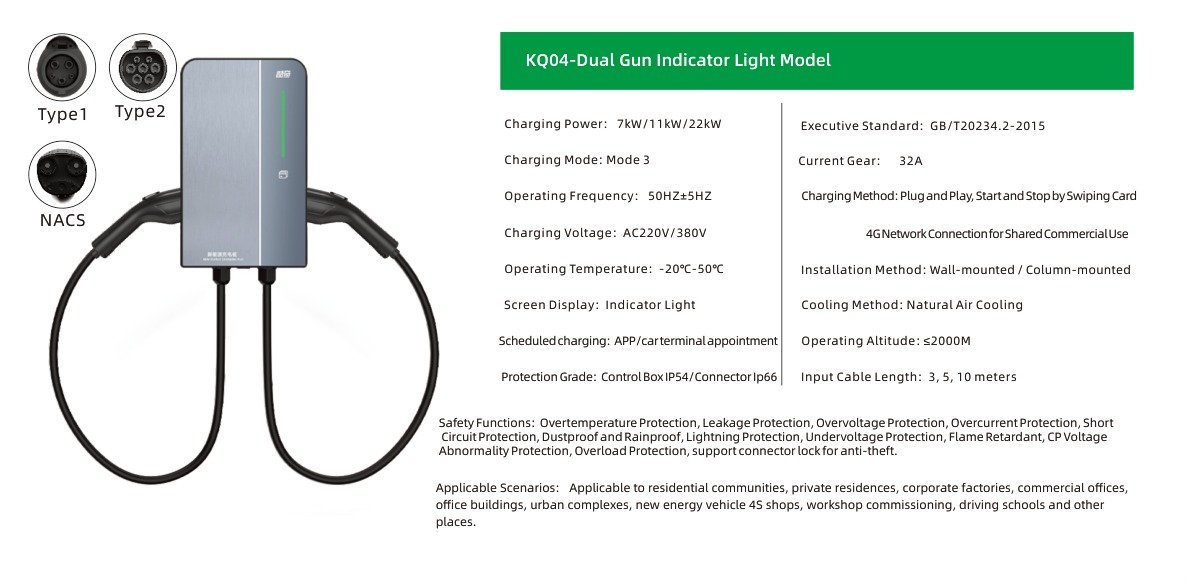

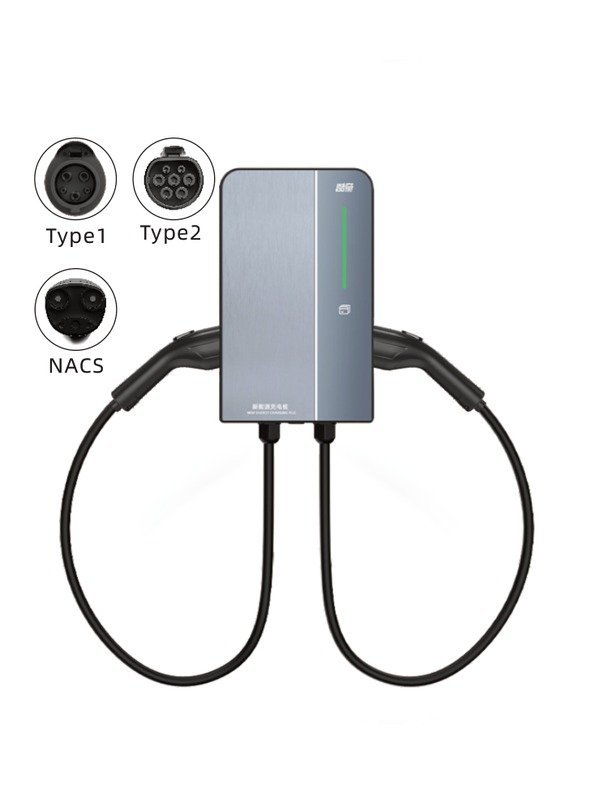

The KQ04 Dual Gun Indicator Light Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features Indicator Light. Dual Gun - charge two vehicles simultaneously. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 32A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Type | Indicator Light |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -20°C ~ 50°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | APP/Car terminal appointment |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

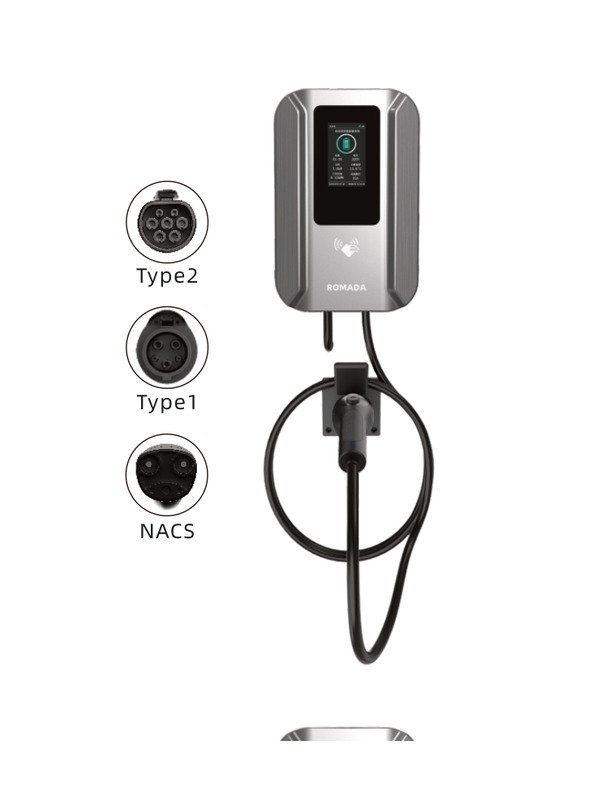

The KQ06 4.3 Display Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features a 4.3 inch LCD Display. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 8A/10A/13A/16A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Size | 4.3 inch |
| Screen Type | LCD Display |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -30°C ~ 55°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | 1~12H |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

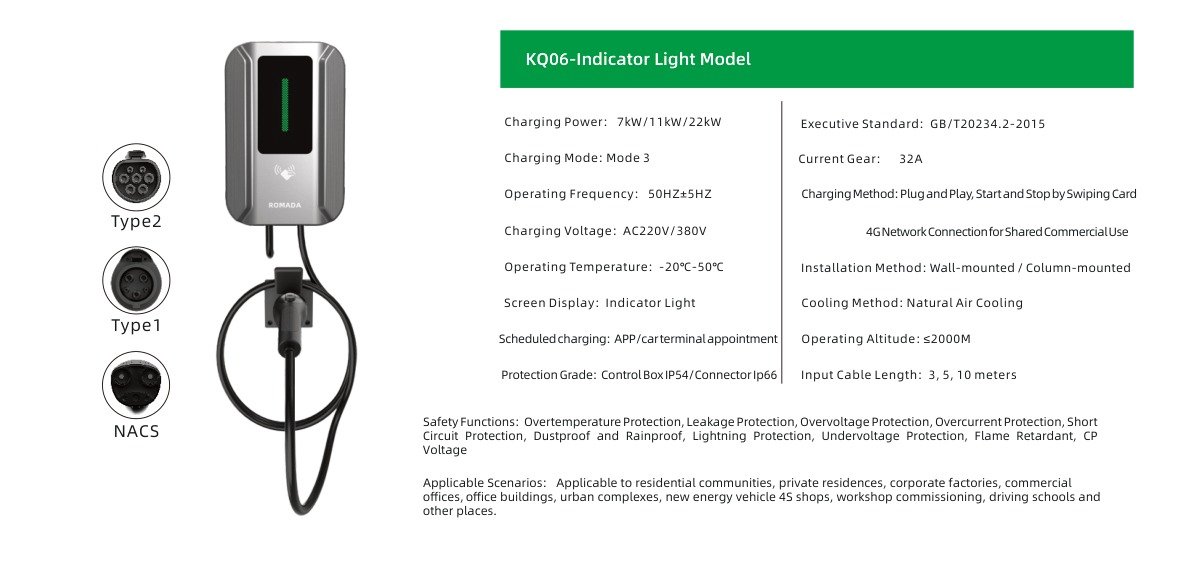

The KQ06 Indicator Light Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features Indicator Light. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 32A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Type | Indicator Light |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -20°C ~ 50°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | APP/Car terminal appointment |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

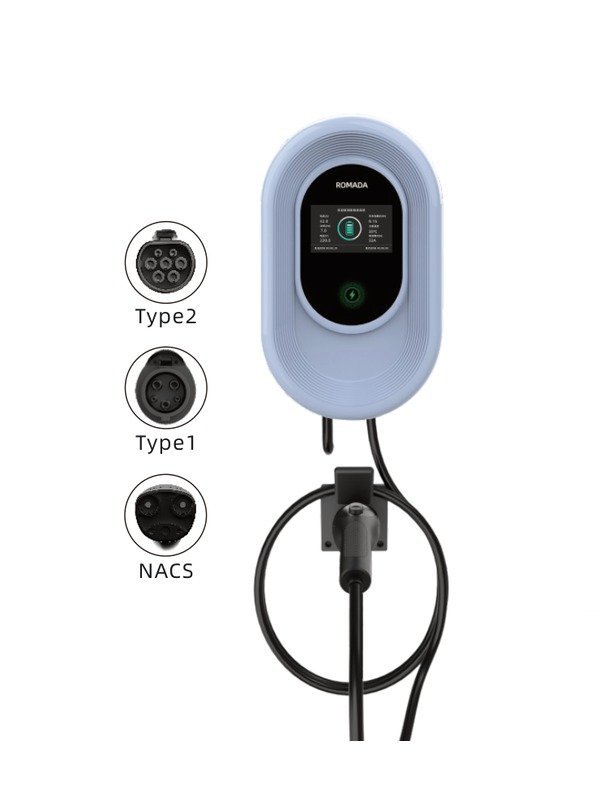

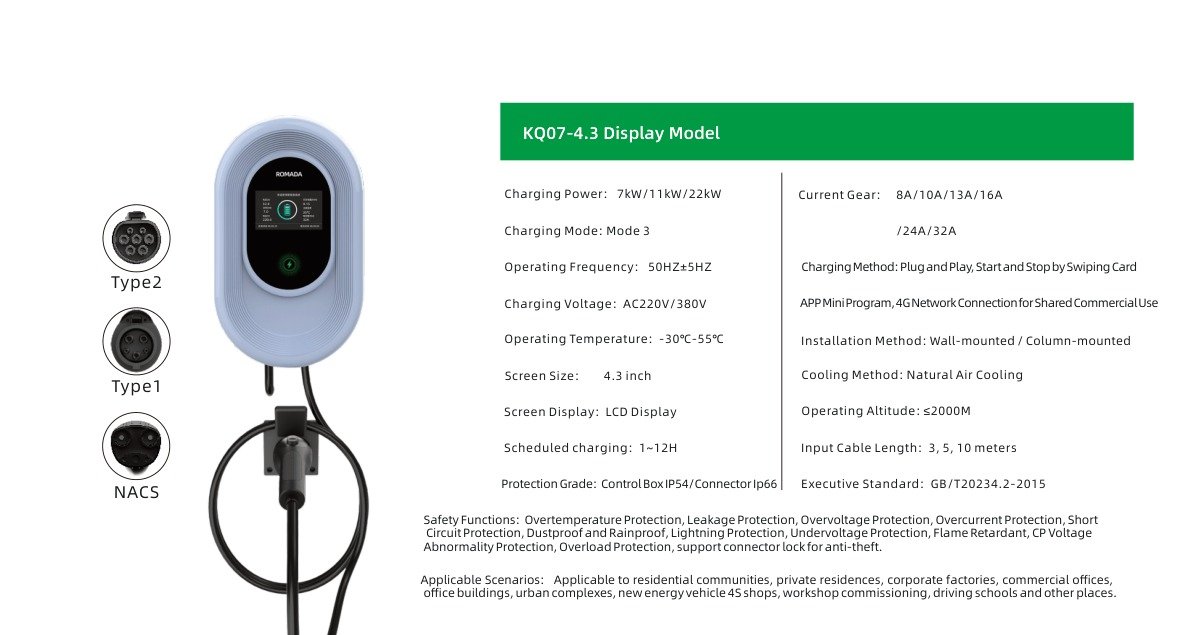

The KQ07 4.3 Display Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features a 4.3 inch LCD Display. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 8A/10A/13A/16A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Size | 4.3 inch |
| Screen Type | LCD Display |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -30°C ~ 55°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | 1~12H |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

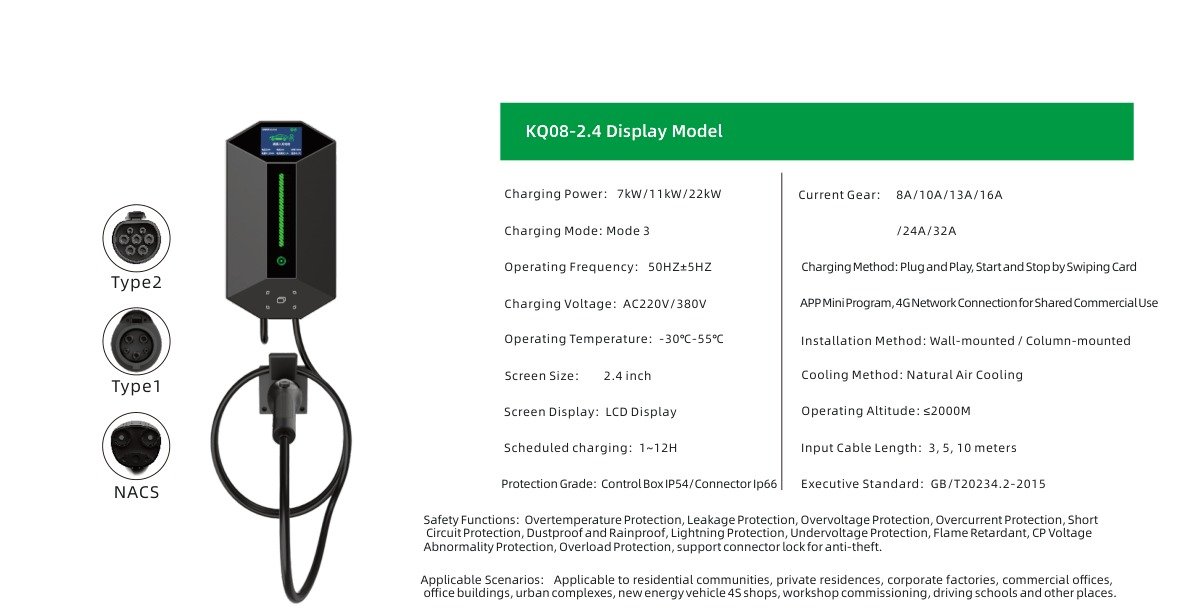

The KQ08 2.4 Display Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features a 2.4 inch LCD Display. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 8A/10A/13A/16A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Size | 2.4 inch |
| Screen Type | LCD Display |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -30°C ~ 55°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | 1~12H |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |

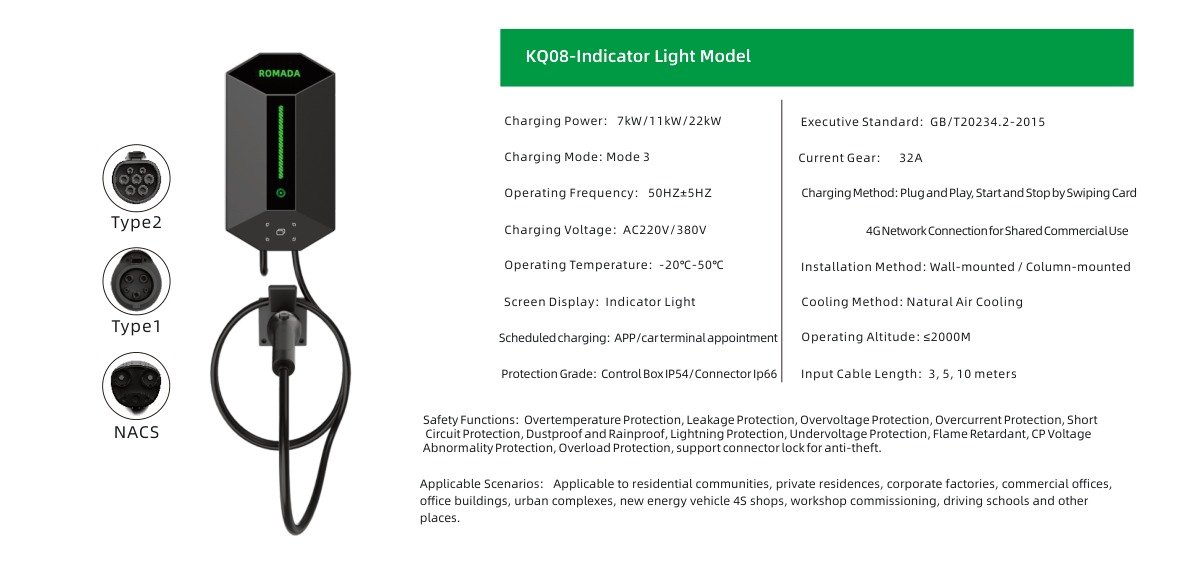

The KQ08 Indicator Light Model is a wall-mounted AC charging pile with 7kW/11kW/22kW power output and Mode 3 charging. Features Indicator Light. Protection rating: Control Box IP54 / Connector IP66. Supports Plug and Play, Start and Stop by Swiping Card. Compatible with Type 2, Type 1 (J1772), and NACS connectors. Supports 4G network connection and APP mini program for shared commercial use. Ideal for residential communities, commercial buildings, and 4S shops.
| Charging Power | 7kW/11kW/22kW |
| Charging Mode | Mode 3 |
| Current Gear | 32A |
| Charging Voltage | AC 220V/380V |
| Operating Frequency | 50Hz ± 5Hz |
| Charging Method | Plug and Play, Start and Stop by Swiping Card |
| Protection Rating | Control Box IP54 / Connector IP66 |
| Screen Type | Indicator Light |
| Connector Types | Type 2 / Type 1 (J1772) / NACS |
| Cable Length | 3m, 5m, 10m |
| Operating Temperature | -20°C ~ 50°C |
| Cooling Method | Natural Air Cooling |
| Operating Altitude | ≤ 2000m |
| Scheduled Charging | APP/Car terminal appointment |
| Executive Standard | GB/T 20234.2-2015 |
| Smart Features | APP Mini Program, 4G Network Connection for Shared Commercial Use |
| Safety Functions | Over-temperature protection, leakage protection, overvoltage protection, overcurrent protection, short circuit protection, dustproof and rainproof, lightning protection, undervoltage protection, flame retardant, CP voltage abnormality protection, overload protection, connector lock for anti-theft |
| Applications | Residential communities, private residences, corporate factories, commercial offices, office buildings, urban complexes, new energy vehicle 4S shops, workshop commissioning, driving schools and other locations |
