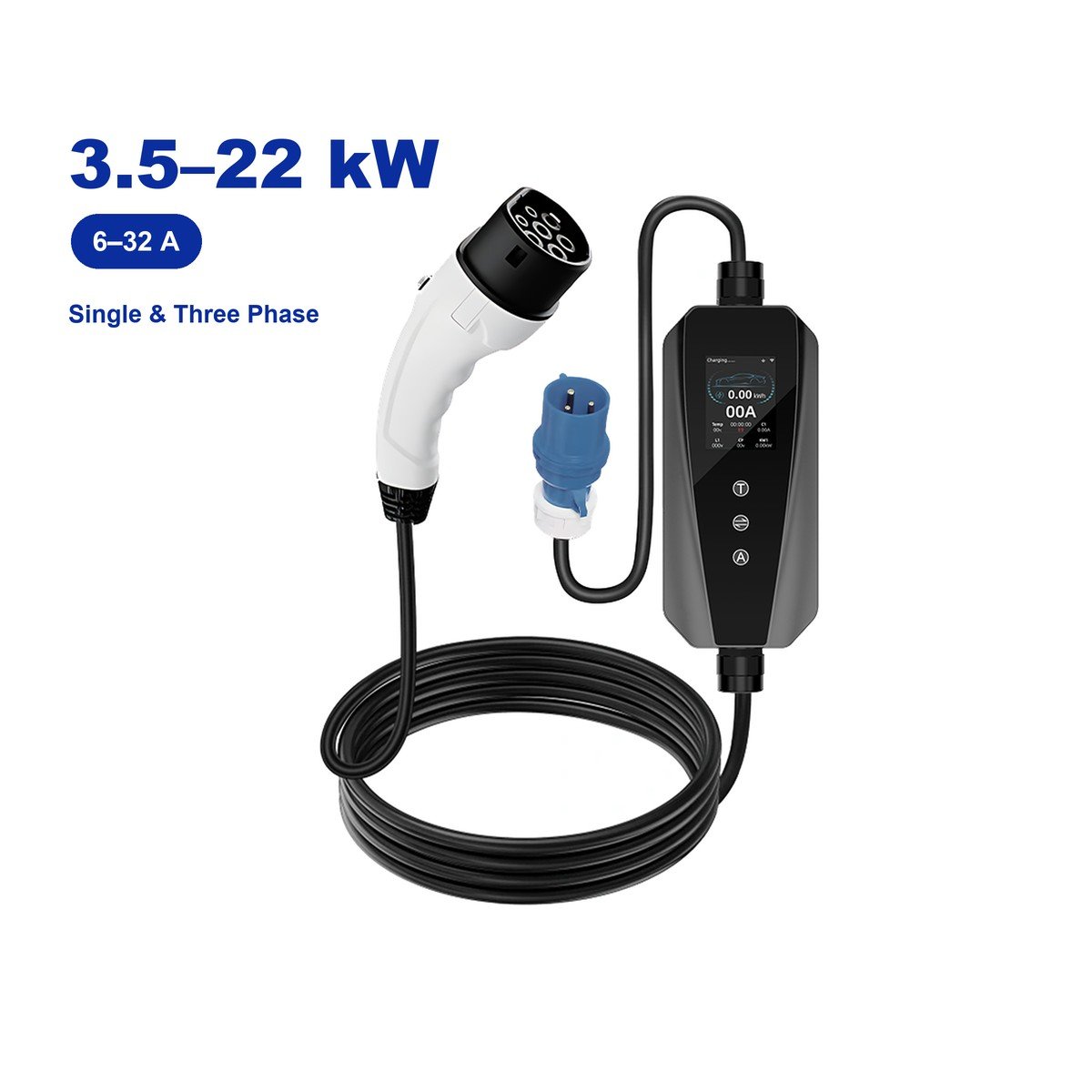

Configurable Mode 2 EVSE for Distributor, Installer & OEM Programs.
3.5 / 7 kW Single-phase · 11 / 22 kW Three-phase · 6–32 A
Available configurations vary by region, supply phase, connector type and applicable compliance requirements.
KM2-01 is a configurable series, not a fixed SKU. Build your specification in five steps — or simply tell us your market and we will recommend a configuration.
Regional compliance and local electrical requirements.
3.5 / 7 kW single-phase; 11 / 22 kW three-phase options.
Regional mains plugs and industrial plug configurations.
Type 2, GB/T, Type 1 and NACS options.
Display, connectivity, cable length, packaging and OEM options.
One platform, many markets. KM2-01 adapts to regional power grids, sockets and vehicle connectors — with smart features where you need them.
6–32 A options depending on model and configuration — match the charger to local circuits and vehicles.
Real-time charging status, voltage, current and charging information at a glance.
Designed for regional mains plug and industrial plug configurations across GB, EU and US standards.
Type 2, GB/T, Type 1 and NACS connector options for the markets you serve.
Plug & Play standard; Bluetooth/App control and scheduled charging where configured.
Configure KM2-01 with the vehicle connector and regional input plug combination required for your target market.
Select the connector that matches the vehicles in your target market.
Choose regional mains plugs or industrial plugs according to local power supply and selected charging configuration.
3-pin Plug
3-core Industrial Plug
2-pin Plug
3-core Industrial Plug
6-20P Plug
14-50 Plug
5-core Industrial Plug
Available plug and connector combinations vary by selected power, phase, destination market and applicable requirements.
Series capabilities first, then regional differences. Values apply to the series — per-configuration details are confirmed with your quotation.
| Product Type | Mode 2 Portable EVSE (IC-CPD) |
| Charging Power | 3.5 / 7 / 11 / 22 kW options |
| Charging Current | 6–32 A, depending on model and configuration |
| Vehicle Connector | Type 2 / GB/T / Type 1 / NACS |
| Input Plug | Regional mains plug and industrial plug options |
| Display | 2.8-inch LCD Display |
| Charging Cable | 5 m standard; custom lengths on request |
| Ingress Protection | IP65-rated enclosure |
| Operating Temperature | −25°C to +50°C |
| Start Mode | Plug & Play / App Control (Optional) |
| Connectivity | Wi-Fi & Bluetooth (Optional Module) |
| Residual-Current Protection | Type A RCD (standard) / Type B (optional) |
| Relative Humidity | 5%–95% RH, non-condensing |
| Maximum Altitude | ≤ 2,000 m above sea level |
| China (GB) | Europe (EU) | North America (US) | |
|---|---|---|---|
| Reference Standards | GB/T 18487 | EN 62752 | UL 2594 / UL 2231 |
| Input Voltage Range | 1-ph 90–265 V · 3-ph 340–460 V | 1-ph 90–265 V · 3-ph 340–460 V | 1-ph 90–265 V AC |
| Frequency | 50 Hz | 50 Hz | 60 Hz |
| Maximum Current | 16 / 32 A | 16 / 32 A | 16 / 32 A |
| Maximum Charging Power | 3.5 / 7 / 11 / 22 kW | 3.5 / 7 / 11 / 22 kW | 3.5 / 7 / 9.6 kW |
Regional compliance reference varies by regional configuration. Available configurations vary by region, supply phase, power rating, connector type and applicable compliance requirements. Specifications are indicative and subject to change without notice.
📄 Download the full KM2-01 datasheet (PDF)
Request the datasheet, applicable documentation and packaging information for your target market and selected configuration.
Core protection features are available by configuration. Confirm the applicable specification for your target market.
Portable charging for compatible power supplies. Check local electrical and installation requirements.
Compact and rugged enough to live in the boot, ready wherever you stop.
A reliable backup when public charging is out of reach.
Sell KM2-01 under your own brand.
Configure KM2-01 for your brand, target market and sales channel. OEM availability, MOQ and lead time are confirmed according to the selected configuration.
Tell us your target market, required power, vehicle connector and expected quantity. Our team will recommend a suitable configuration and prepare a quotation.
It depends on the vehicle's on-board charger and the local power supply. 3.5 kW and 7 kW single-phase configurations suit standard household circuits, while 11 kW and 22 kW three-phase configurations require a three-phase supply and a vehicle that supports three-phase AC charging. Tell us your target market and we will recommend the right option.
Type 2 is the standard connector in Europe, GB/T is used in China, and Type 1 and NACS are common in North America. If you serve several markets, mixed orders with different connectors can usually be arranged — let us know your requirements.
KM2-01 supports GB, EU and US input plugs, including domestic and industrial types such as GB 16A/32A, EU 16A/32A (including three-phase) and US 16A (6-20P) / 32A (14-50). The right plug depends on your market, selected power and phase configuration.
Yes. OEM and white-label options include boot-up logo on the display, nameplate and front panel customization, packaging labels and customized user manuals. OEM availability, MOQ and lead time are confirmed according to the selected configuration.
No. Available configurations vary by region, supply phase, power rating, connector type and applicable compliance requirements. For example, North American configurations are single-phase up to 9.6 kW. See the Regional Configuration Overview above or contact us for a market-specific recommendation.
Use the configuration form on this page or contact us via WhatsApp or email. Tell us your target market, required power, vehicle connector and expected quantity, and our team will recommend a suitable configuration and prepare a quotation.
